Expandit is the worlds premier manhole to manhole sewer pipe bursting system. It has been around for 20 years now, and has an unparalleled track record, in the renovation & rehabilitation of gravity sewers. In the right conditions, it can be used to replace sewers on a size for size basis, or up to a 100% increase in diameter, without the need for excavation.
Expandit has been utilised throughout the world, and could be the exact solution that you are looking for, to provide that trenchless solution for your gravity sewer upgrade or replacement.
NO excavation, NO disruption, COST-EFFECTIVE

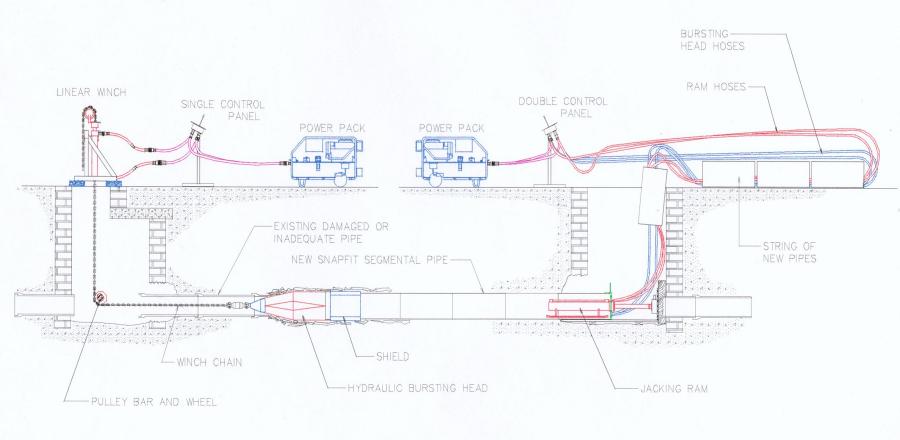

The Expandit head (or “mole”) is the heart of the system - it expands & contracts radially to burst the existing pipe & leave an annulus in which to push the new product pipe.

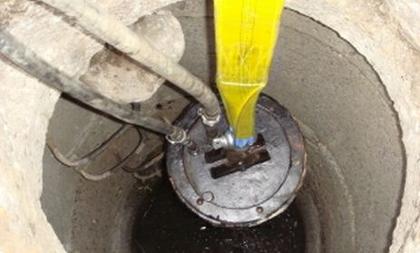

The hydraulic 12 tonne winch is located at the reception manhole, and provides a guiding service for the pipe bursting head, to ensure a great line.
Power delivery is via a pair of low-emission hydraulic power packs, delivering 3,500 psi. These power packs drive the whole system.
The hydraulic ram is the force behind the pipe-string; it is located in the launch manhole and pushes the whole rehab system & new pipe from A-B
A pair of control panels (1 * single & 1 * double) control the whole system, from pushing & bursting pressures, to the monitoring of surrounding ground. |
|
EXPANDIT Hydraulic Pipe Bursting |
|
The final product pipe can be a variety of materials, to suit the prevailing site status. The more common types of materials are polyethylene, clayware, concrete & GRP.
For an informal chat, or to find out if the Expandit system is the solution to your sewer rehabilitation / replacement problems, you can always email us at |
|
CONTACT US: hello@expandit.org.uk
|
